Production-Ready 3D Sheet Metal Design Services
We provide 3D sheet metal fabrication design services for enclosures, brackets, cabinets, chassis, covers, machine guards, frames, panels, and custom assemblies. Every design is developed with manufacturing practicality in mind from the start.
Our design engineers review key design factors such as:
- Bend allowances and K-factor
- Relief geometry and corner conditions
- Hole placement near bends
- Fastening clearances
- Formed dimensions and fit-up
- Tool access and serviceability
- Structural strength where required
Where required, we also consider captive hardware, PEM inserts, hinges, latches, mounting features, and assembly access during the design stage. This helps prevent common fabrication issues such as forming problems, poor fitment, avoidable rework, or repeated design changes later in the project.
Sheet Metal Detailing Services and Fabrication Drawings
A strong model still needs clear documentation. Our sheet metal detailing services provide your production team with the drawings and files required to manufacture parts accurately and consistently.
We deliver:

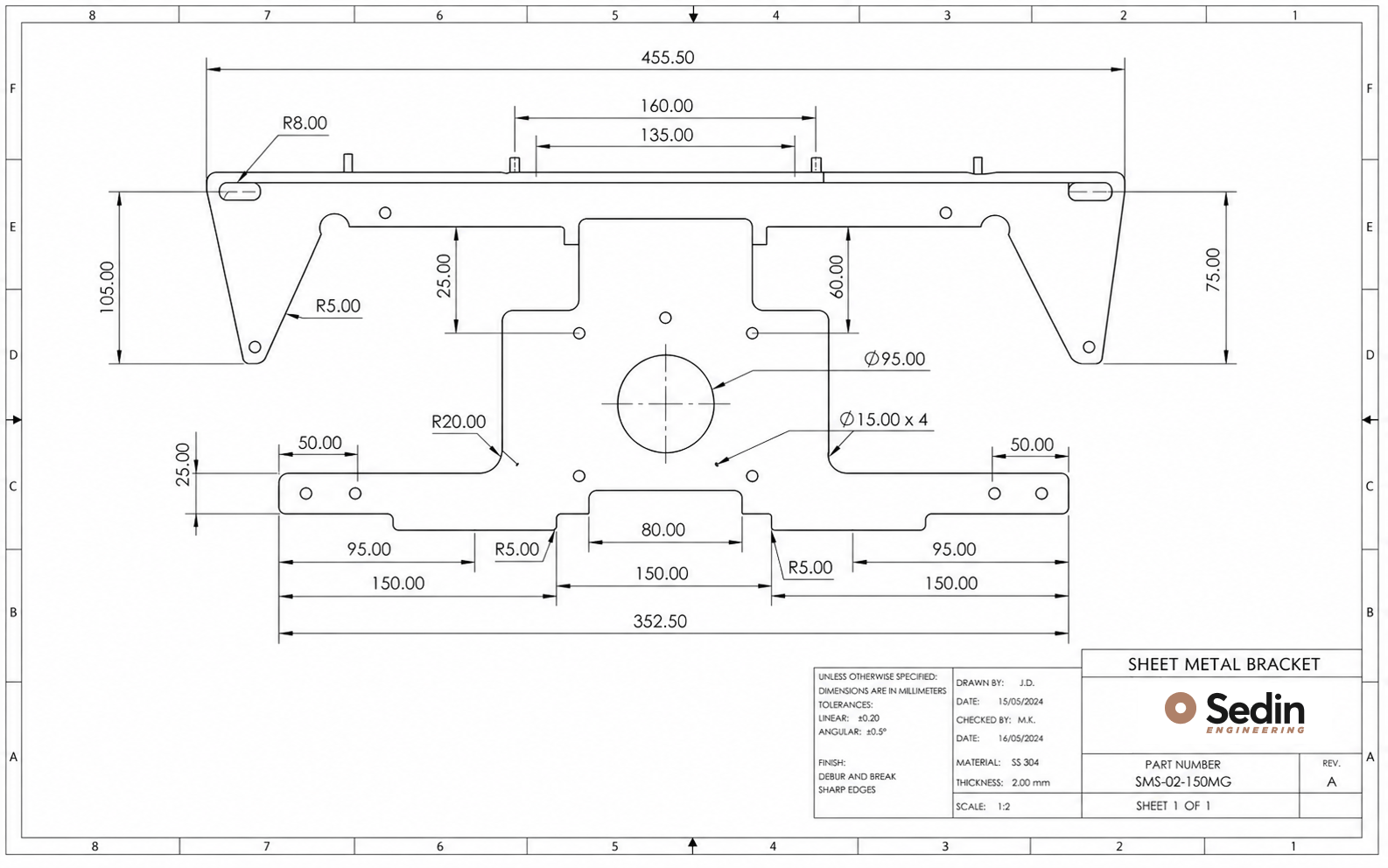

- Fabrication drawings
- Flat patterns
- DXF files for laser cutting or CNC punching
- Assembly drawings
- Bills of Materials (BOMs)
- Weld details and finish notes
- Tolerance information
Drawings are prepared to suit your manufacturing workflow, helping reduce shop-floor confusion, speed up quoting, and keep production moving smoothly.
Sheet Metal Engineering That Reduces Production Risk

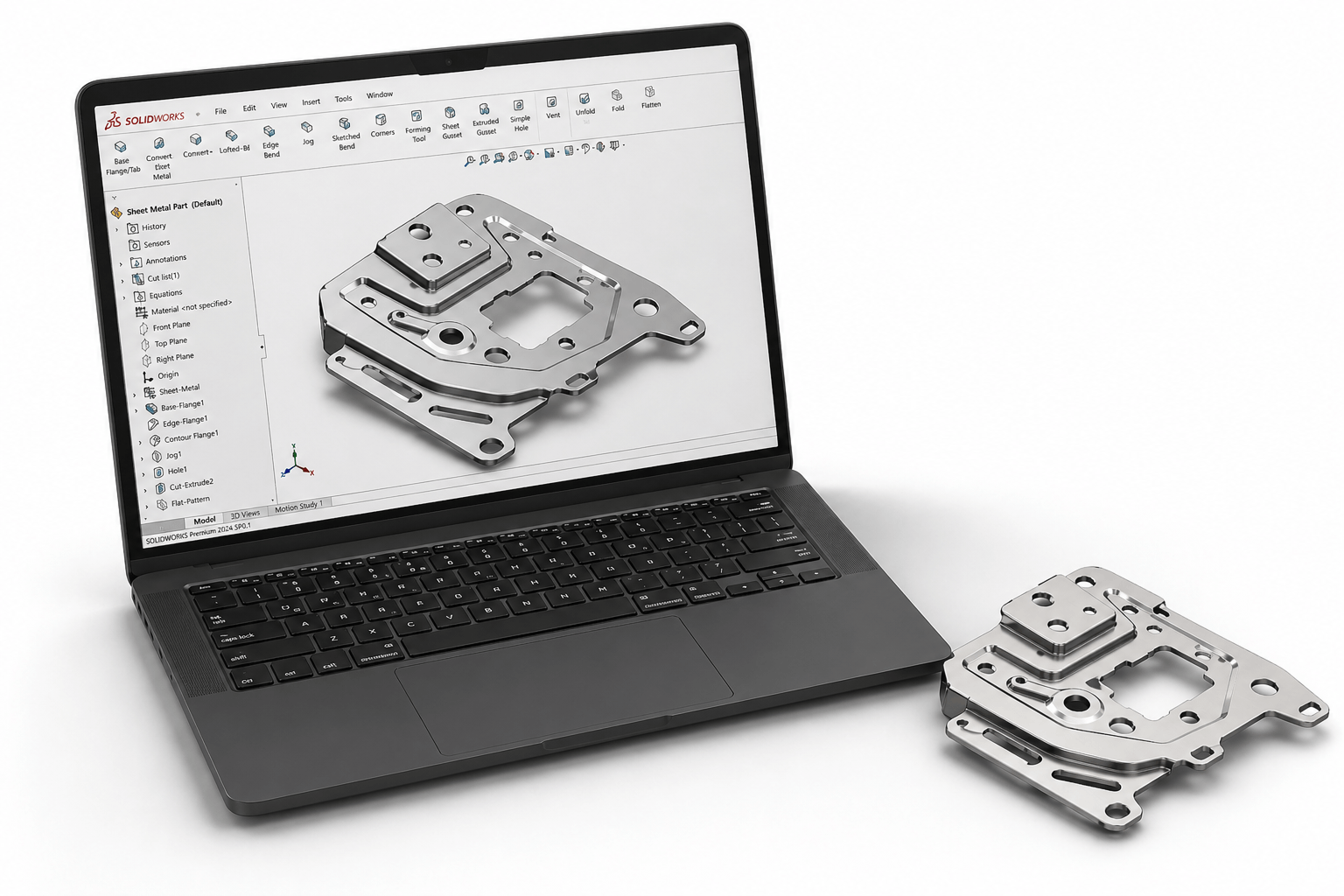

Effective sheet metal engineering requires understanding how material behaves during cutting, bending, welding, coating, and assembly. Designs that look correct in CAD can still create problems if these factors are ignored.
We account for practical risks such as springback after bending, cracking on tight radii, hole distortion near bends, tolerance stack-up across assemblies, weld distortion, and finish thickness affecting final fit.
We also help define practical tolerances that meet functional requirements without adding unnecessary manufacturing complexity or cost. By addressing these points early, we help clients achieve smoother fabrication and more predictable quality.
Lower Manufacturing Cost Through Better Design
Many manufacturing costs are influenced during the design stage. Decisions around geometry, part count, material selection, and process flow directly affect production efficiency.
We help reduce cost through:
- Simpler bend sequences
- Fewer unnecessary welds
- Better material utilization
- Reduced part count where practical
- Standard materials and hardware selection
- Faster assembly access
We also support material selection based on strength, corrosion resistance, weight, finish requirements, and forming suitability to match both product performance and manufacturing needs. This helps clients improve efficiency, avoid unnecessary cost, and achieve measurable long-term savings across repeat production.
Support for New Designs, Redesigns, and Legacy Parts
Some clients need a new concept developed into production-ready data. Others need an existing part corrected, modernized, or rebuilt from outdated drawings.
We support both. Whether you have a sketch, PDF, sample part, STEP file, or legacy 2D drawing, we can convert it into accurate CAD data and improve it for current manufacturing needs.
